MPI-G500 SERIES
FEATURES
- Compact size 3 x 5 inch
- 500W fan cooling, 300W with convection-cooled of single output power supply
- ITE safety standard IEC 62368-1, BS IEC 62368-1, UL 62368-1, CSA C22.2 No. 62368-1 CE LVD approved
- High efficiency up to 94%
- Optional +5Vsb and remote on/off function
- Design to meet EN 60335-1, IEC 60335-1, UL 60335-1, BS EN 60335-1
TAGS
UL62368
LVD62368
Meet IEC60335
Peak Power
Standby Power<0.5W
PFC
Efficiency >92%
High Efficiency >95%
Wide Temperature (~80C)
Fanless

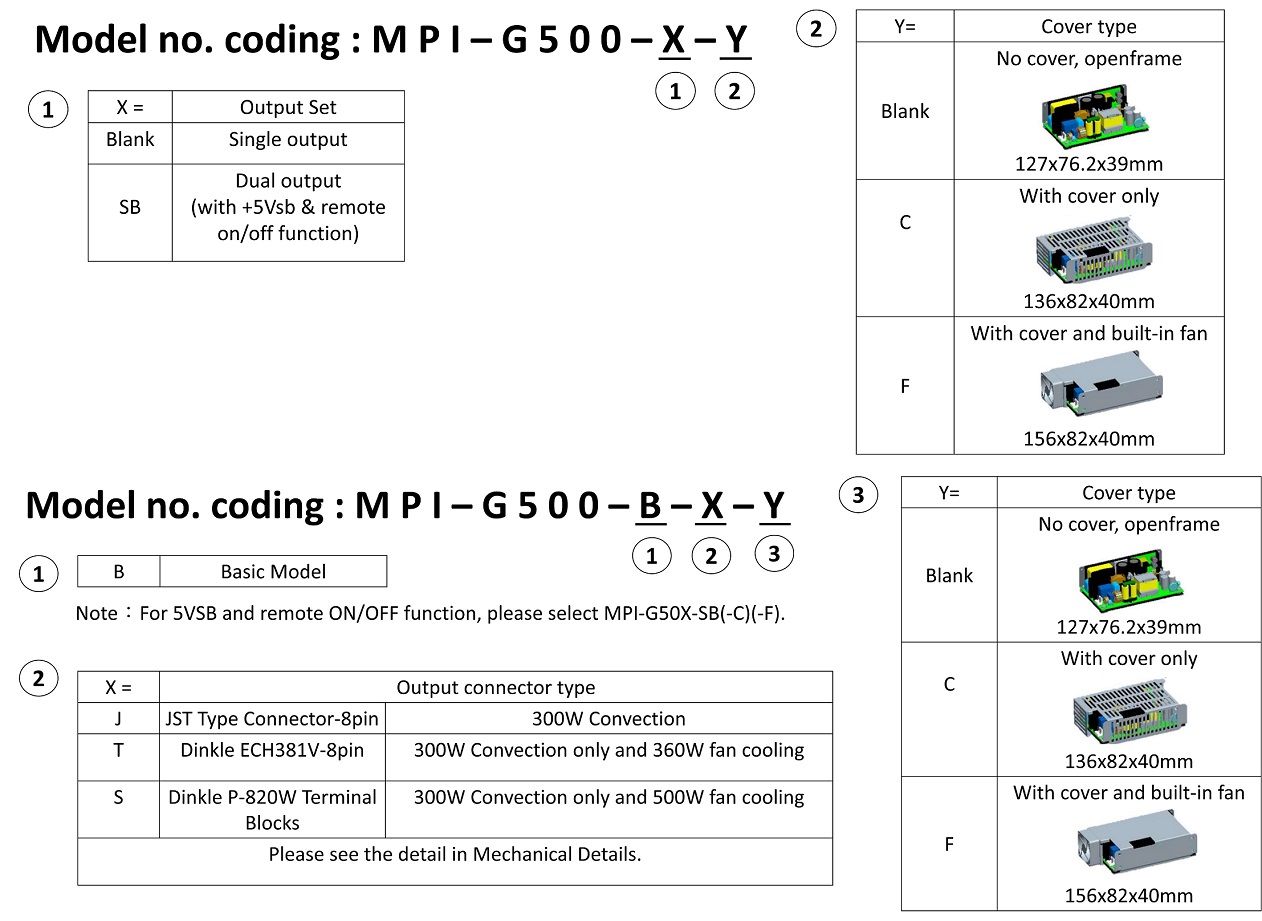

Models & Ratings
| MPI-G503 | 300 W / 500 W | 12 V / 5Vsb | 25 A | SPEC |
|---|---|---|---|---|
| MPI-G505 | 300 W / 500 W | 24 V / 5Vsb | 12.5 A | SPEC |
| MPI-G506 | 300 W / 500 W | 48 V / 5Vsb | 6.25 A | SPEC |
| MPI-G503-B-X-Y | 300 W / 500 W | 12V | 25 A | SPEC |
| MPI-G505-B-X-Y | 300 W / 500 W | 24V | 12.5 A | SPEC |
